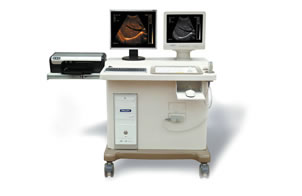

ML-2018CIV Ultrasonic Diagnosis System with Two Probes

ML-2018CIV Ultrasonic Diagnosis System with Two Probes

Features of ML-2018CIV Ultrasonic Diagnosis System with Two Probes:
1. Microcomputer, digital scanning converter and TGC control system are designed for this kind of ultrasonic diagnosis system.
2. Its images are clear, stable and high-resolution.
3. B, B+B, B+M, and M display modes are available, and the grayscale is 256.
4. Its image reversion modes include up/down, left/right, and black/white.
5. More than 10 different types of body marks and lithotriptor positioning function are available.
6. Built-in pseudo-color processing module, and PAL-D and VGA video output have been designed.
7. Touch keyboard and mouse ensure its easy and flexible operation.
8. The use of trolley structure, transformer switch power supply without power frequency, programmable parts and surface mounting technology make this ultrasonic diagnosis system high in automation degree, small in size and light in weight.
9. Its standard configurations ultrasound scanner with 17" CRT monitor, image workstation with 19" LCD monitor, 3.5 MHz multi-frequency convex probe, and 6.5 MHz transvaginal probe. And its optional configurations are 7.5 MHz linear probe and HP ink jet printer.

Specifications of ML-2018CIV Ultrasonic Diagnosis System with Two Probes:
1. Standard probe: 3.5MHz multi-frequency convex probe
2. Display depth: ≥220mm
3. Blind zone: ≤5mm.
4. Image magnification rate: ×1.0, ×1.2, ×1.5, ×2.0.
5. Depth lift: B, B+B modes
6. Lateral resolution: ≤ 2mm; axial resolution: ≤1mm.
7. Measuring range: distance, circumference, area, heart rate, gestational week, and fetal weight.
8. Image reversion mode: up /down, left/right, black/white.
9. Character display: time, date, medical recorder number, age, sex, detecting depth, probe type, focus combination, frame correlation, etc.
10. Conversion between Chinese and English is available.
11. Its obstetric table includes BPD, CRL, GS, FL, AC, HC, FW, and EDD.

We are a professional manufacturer and supplier of ultrasonic diagnosis system with two probes in China. We also offer our clients around the word with other products including Veterinary ultrasound scanner, 3D ultrasound scanner, portable ultrasound scanner, etc. We have obtained ISO and CE certification, and we also offer OEM service. Our products have been quite popular among customers from Syria, Kazakhstan, Kyrgyzstan, India, Pakistan, Iran, Vietnam, Indonesia, Britain, Germany, Italy, Sweden, Romania, South Africa, Egypt, Ecuador, Uganda, Bolivia, Paraguay, Uruguay, Mexico, the United States, Canada, Argentina, Peru, etc. If you're interested in any of our products, please don't hesitate to contact us freely.
