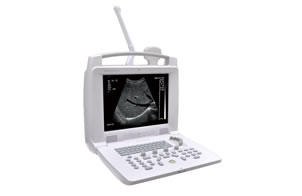

PL-3018I Laptop Veterinary Ultrasound Scanner

PL-3018I Laptop Veterinary Ultrasound Scanner

Features of PL-3018I Laptop Veterinary Ultrasound Scanner:
1. Its image is clear and stable, and has a high resolution.
2. Four display modes have designed for this laptop veterinary ultrasound scanner: B, B+B, B+M and M.
3. It can amplify the frozen, real-time and partial images, and it can be reversed up and down, left and right, and black and white.
4. It has 10 different kinds of body marks and lithotripter positioning function is also available.
5. Portable injection molding shell, transformer switch power supply, and programmable components are employed.
6. Surface mounting technology has been used in this PL-3018I laptop veterinary ultrasound scanner.
7. Built-in pseudo-color processing module, and PLA-D and VGA video output are accessible, and it can also be connected with large-screen monitor, color display, video image printer, and many other devices.
8. 2 USB ports and 2-probe connectors are designed for it.
9. Its standard configurations include main unit and 3.5 MHz multi-frequency convex probe. And its optional configurations consist of 7.5 MHz linear probe, 6.5 MHz transvaginal probe, 5.0 MHz micro-convex probe, MITSTUBISHI thermal video printer, SONYUP-897MD thermal video printer, and trolley.

Specifications of PL-3018I Laptop Veterinary Ultrasound Scanner:
1. Standard probe: 60R/3.5MHz multi-freq convex probe;
2. Max. Scanning Depth: 240mm
3. Frequency: 2.5MHz -8.5MHz
4. Connector amount: 2
5. Blind zone: ≤5mm;
6. Display modes: B, B+B, B+M, M, 4B
7. Gray Scale: 256
8. Image amplification: ×1.0, ×1.2, ×1.5, and × 2.0
9. Local zoom: intelligent amplification in real-time and forzen mode, 4-step.
10. Electronical focus: random combination of 4 focuses
11. Depth shift: B, B+B modes real time shift;
12. Resolution: lateral≤ 2mm; axial≤1mm
13. Frame correlation: B, B+B modes; 3 levels
14. Image reversion: up/down; left/right; black/white;
15. Measuring range: distance, circumference, area, heart rate, gestational week, fetal weight, etc;
16. Annotating range: time, date, medical record number, age, sex, detecting depth, probe type, focus, frame correlation, etc;
17. Chinese-English inter-conversion is available.
18. Cine-loop: 341, playback selectable, can be saved in USB disk and recalled for analysis
19. Pre-processing: IP selection, dynamic range, edge enhancement, smooth, frame averaging, scanning angle selection, line density selection
20. Post-processing: γcorrection, gray transformation, gray rejection
21. STC: 8 slides for near, far and overall gain control.

Measuring Range of PL-3018I Laptop Veterinary Ultrasound Scanner:
1. B mode: distance, circumference, area, volume, ratio, angle, histogram, profile
2. M mode: distance, time, velocity, heart rate
3. EDD tables: BPD, GS, CRL, FL, HC, AC (user-defined EDD tables are available)
4. Report types: normal report, OB report, GYN report, urology report and cardiac report
5. Management: patient information management
6. Documentation: Full screen documentation, hospital name, patient name, date/time;
7. Annotation database is available, and the pre-saved phrases can be recalled at any time.
8. Obstetric table: BPD, CRL, GS, FL, AC, HC, FW, EDD
9. Body marks: ≥40 types with probe position;
10. Video output: PAL-D, VGA
11. Monitor: 12 " LCD high resolution monitor
12. Power Supply: 100V~130V/220V~240V, 50/60H
13. Net Weight: 6Kgs (including probe)
14. Dimensions (mm): 410×320×410

We are a professional manufacturer and supplier of laptop veterinary ultrasound scanner in China. Our laptop veterinary ultrasound scanner image is clear and stable, and has a high resolution. Apart from laptop veterinary ultrasound scanner, we can also provide other products, such as 3D ultrasound scanner, portable ultrasound scanner, trolley ultrasound scanner, etc. And our products have received the certification of CE and ISO. They have been quite popular among customers from Syria, Kazakhstan, Kyrgyzstan, India, Pakistan, Iran, Vietnam, Indonesia, Britain, Germany, Italy, Sweden, Romania, South Africa, Egypt, Ecuador, Uganda, Bolivia, Paraguay, Uruguay, Mexico, the United States, Canada, Argentina, Peru, etc. If you need laptop veterinary ultrasound scanner, please contact us freely.
