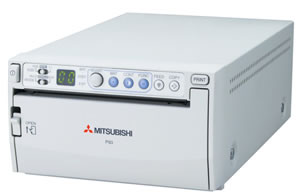

P93 Mitsubishi Ultrasound Video Printer

P93 Mitsubishi Ultrasound Video Printer

Description of P93 Mitsubishi Ultrasound Video Printer:
This P93 Mitsubishi black and white video printer, sometimes also called medical printer, ultrasound printer, thermal printer or recorder, is a kind of new-type printing machine manufactured by Mitsubishi Company, and its printing paper can be KP61B normal thermal paper with the specification of 110mm×21m, KP65HM high-density thermal printing paper with the dimension of 110mm×21m, and ultra-high density bright thermal printing paper with the specification of 110mm×18m. It is mainly used in the output of ultrasound scanner images of medical diagnosis.

The P93 Mitsubishi ultrasound video printer is mainly used for image output of diagnostic equipment, gel imaging, microscopic analysis, monitoring, industrial examining, scientific research, and film and entertainment production in various fields, like the black and white ultrasound, color Doppler ultrasound, endoscope microscopic analysis, digital color Doppler ultrasound nuclear medicine, X-ray, CT, nuclear magnetic resonance PACS imaging system, etc.

Features of Mitsubishi P93 Ultrasound Video Printer:
1. Direct thermal printing mode and 256 gray balance have been designed for this printer.
2. Its effective pixels are EIA 1280 dot × 500lines, and CCIR 1280 dot × 600 lines.
3. The printed picture dimension of this kind of P93 Mitsubishi ultrasound video printer is 4"(W) × 12 5/8" (H).
4. In order to reproduce detailed images, it has been matched with high-density print head and thermal paper.
5. It has features of front-button control, high-speed printing, high stability, high precision, and various suitable print options.
6. A wide range of image dimensions are available for operators.
7. Designed with Mitsubishi unique large area, it is quite easy to read LED digital display.

Parameters of P93 Mitsubishi Ultrasound Video Printer:

Printing Method Direct Thermal Printing
Thermal Head Thin Film Thermal Head (1280 dots)
Gradations True 256 gray balance
Resolution 325 DPI
Printed Picture Size 4"(W) × 12 5/8" (H)
Effective Pixels EIA 1280 dot × 500lines
CCIR: 1280 dot × 600 lines
Memory 10 Frames
Input/Output Video In: BNC, CCIR or EIA composite video signal, 1.0
Vp-p, 75 ohms/ high impedance selectable
Video Out: BNC, Loop-through or E to E selectable
Print Speed Approximately 3.3seconds
(High Speed Mode)
Remote Terminal Stereo Mini-jack
Power Requirements 100V to 240V, 50/60 Hz, 1.5A to 0.8A (Worldwide)
Dimensions (WHD) 154×89.5×256mm(W×H×D)
Weight 2.8kg
Safety Standards UL60950-1 Listed CSA C22.2 No.60950-1 UL60601-1 Listed CSA No.60601-1
Supplied Accessories AC Power Cord
Operation Manual (CD ROM)
Thermal Head Cleaning Sheet
BNC Video Connecting Cable
K65HM High Gloss Paper (1 Roll)
Media (not included) K65HM High Gloss Paper
K91HG High Density Paper
K61B  Standard Paper

We are a professional manufacturer and supplier of mitsubishi ultrasound video printer in China. Apart from mitsubishi ultrasound video printer, we still have many other high-quality products such as SONY ultrasound video thermal printer, ultrasound image workstation, video colposcope, ultrasound scanner, etc. We have obtained ISO and CE certification. Our products have been well received by customers from many countries, such as Syria, Kazakhstan, Kyrgyzstan, India, Pakistan, Iran, Vietnam, Indonesia, Britain, Germany, Italy, Sweden, Romania, South Africa, Egypt, Ecuador, Uganda, Bolivia, Paraguay, Uruguay, Mexico, the United States, Canada, Argentina, Peru, etc. If you are interested in our mitsubishi video printer, please contact us freely.
