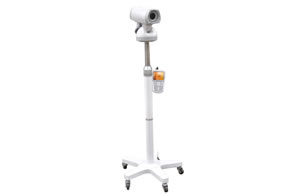

PL-9800A Video Colposcope Connected with Monitor

PL-9800A Video Colposcope Connected with Monitor

Description of PL-9800A Video Colposcope Connected with Monitor:
This PL-9800A video colposcope connected with monitor is a kind of gynecological clinical diagnostic equipment, and it widely applied in diagnosing lower genital tract diseases, especially reproductive tract precancerous lesions and early cancer.
By enlarging the observed images by 10 to 60 times, it is helpful for doctors in finding small pathological changes that cannot be found by our naked eyes.
Its standard configurations consist of colposcope, camera control screen, and tripod. And the optional configurations are monitor, SONY UP-897MD thermal printer, trolley and software.
It has passed the certification of CE.

Applications of PL-9800A Video Colposcope Connected with Monitor:
1. By combining light, power and video for high-resolution imaging, superior diagnostics and information management, this kind of video colposcope can provide more clear and vivid images for doctors.
2. It is able to collect and store high-quality images of cervix, vagina and vulva for all women's health applications and cervical cancer screening.

Features of PL-9800A Video Colposcope Connected with Monitor:
1. Its direct-to-screen ensures its full-screen and high-resolution images.
2. It have no couplers or beam splitters to degrade image quality or view field.
3. It can be connected with various monitor directly, like TV monitor, and PC monitor.
4. It can work normally without connection with laptop, desktop computer, or other software.
5. It is quite easy for its control computer to collect a wide variety of images.
6. The lighting system of this video colposcope connected with monitor can produce 50% whiter and brighter light for true tissue color.
7. Its unique polarization filter can remove the glare for accurate tissue assessment.
8. The electronic green filter can remove the red color from images without light loss.
9. With advanced image management, it can store, retrieve, compare, annotate and transmit images.
10. A variety of documentation options are available.

Specifications of PL-9800A Video Colposcope Connected with Monitor:
1. Lens resolution: 1/4"super HAD color CCD, 80,0000 pixel;
2. Lens axial resolution: 470 lines;
3. Lens S/N: 50dB;
4. Lens focus distance: standard 100~400mm; support: 10~1000mm;
5. Field of View: 2.5mm-20mm-320mm
6.Depth of Field: 15mm-40mm; 15mm-480mm
7. Lens min illumination: 0.15Lux
8. Lens zoom: 1~128
9. Lens image output interface: Video, S-video, PAL;
10. Lens fouse: AF/MF;
11. Lens white balance: AWB;
12. Lens lighter type: LED ring, phosphorus gallium arsenide high brightness, longevity light source group (the average lifespan is about 100,000 hours)
13. Lens video-output: PAL, VBS-standard 1.0Vp-p;
14. Power Requirements: AC220V ±10%
15. Power Rating: 500W
16. Brightness adjustment: Automatic electronic shutter
17. Ambient temperature: -40°C to +50°C
18. Storage temperature: -20°C to +60°C
19. Relative Humidity: 30~80%RH
20. Guarantee promise: one year maintenance, and life-long service for parts that are not fragile.
21. Delivery time: 1-3 days after receiving your payment

We are a professional manufacturer and supplier of video colposcope connected with Monitor in China. And we can also provide other products for you, such as handheld video colposcope, trolley digital video colposcope, portable colposcope, etc. We have obtained ISO and CE certification. Our products have been well received by customers from many countries, such as Syria, Kazakhstan, Kyrgyzstan, India, Pakistan, Iran, Vietnam, Indonesia, Britain, Germany, Italy, Sweden, Romania, South Africa, Egypt, Ecuador, Uganda, Bolivia, Paraguay, Uruguay, Mexico, the United States, Canada, Argentina, Peru, etc. If you need Video Colposcope Connected with Monitor, please contact us freely.
