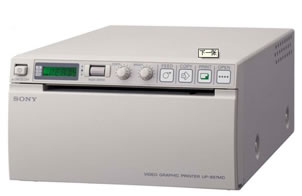

UP-897MD SONY Ultrasound Video Thermal Printer

Description of UP-897MD SONY Ultrasound Video Thermal Printer:
This UP-897MD SONY ultrasound video thermal printer is a kind of new-type Sony video printer, featuring small, light and high-speed. And it is mainly used in the output of ultrasound scanner images.

Features of UP-897MD SONY Ultrasound Video Thermal Printer:
1. Its thermal head is covered by a thin film, and its printing mode is direct thermal printing.
2. Its print density is 1280 dot-matrix and its graduation is 256 gray balance and 325 dpi.
3. The image dimension of this SONY UP-897MD ultrasound scanner video thermal printer is 94×71mm as the minimum one and 127×96mm as the maximum one.
4. It can be controlled through the front panel, and its printing speed is as fast as 2.0 seconds.
5. Compared with the 895 series printer, it is 12% smaller and lighter.
6. The video is used as its printing interface, and it is an ideal choice for ultrasound printing.

Parameters of UP-897MD SONY Ultrasound Video Thermal Printer:

Printing Method Direct Thermal Printing
Thermal Head Thin Film Thermal Head (1280 dots)
Gradations True 256 gray balance
Resolution 325 DPI
Printed Picture Size 4"(W) × 12 5/8" (H)
Effective Pixels EIA 1280 dot × 508 lines
CCIR: 1280 dot × 608 lines
Memory 10 Frames
Input/Output Video In: BNC, CCIR or EIA composite video signal, 1.0
Vp-p, 75 ohms/ high impedance selectable
Video Out: BNC, Loop-through or E to E selectable
Print Speed Approximately 2.0 seconds
(High Speed Mode)
Remote Terminal Stereo Mini-jack
Power Requirements 100V to 240V, 50/60 Hz, 1.5A to 0.8A (Worldwide)
Dimensions (WHD) 6 1/8 × 3 1/2 × 9 1/2 inches
154mm × 88mm × 240mm
Weight Approximately 5 lbs. 12oz.
2.6kg
Safety Standards UL60950-1 Listed CSA C22.2 No.60950-1 UL60601-1 Listed CSA No.60601-1
Supplied Accessories AC Power Cord
Operation Manual (CD ROM)
Thermal Head Cleaning Sheet
BNC Video Connecting Cable
UPP-110HG Media (1 Roll)
Media (Not Included) UPP-110HG High Gloss Paper
UPP-110HD High Density Paper
UPP-110S/5 Standard Paper
Optional Accessories FS-20 Wired foot switch
RM-91 Remote thumb button

We are a professional manufacturer and supplier of SONY ultrasound video thermal printer in China. And we can also provide our clients around the world with many other products including ultrasound scanner, video colposcope, ultrasound image workstation, etc. We have obtained ISO and CE certification, and our products have been well received by customers from many countries, such as Syria, Kazakhstan, Kyrgyzstan, India, Pakistan, Iran, Vietnam, Indonesia, Britain, Germany, Italy, Sweden, Romania, South Africa, Egypt, Ecuador, Uganda, Bolivia, Paraguay, Uruguay, Mexico, the United States, Canada, Argentina, Peru, etc. If you need our SONY ultrasound video thermal printer, please don't hesitate to contact us.
