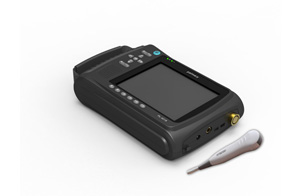

PL-3018 Handheld Digital Ultrasound Scanner

PL-3018 Handheld Digital Ultrasound Scanner

Main Features of the Portable Handheld Ultrasound Scanner:
Net weight: 700g
5.0 inch TFT LCD
Easy-to-use GUI menu
Low power consumption
USB 2.0 for real-time picture uploading to PC
Full digital beam forming technology
Probe automatic identification

Gama correction, Color encode, Image Smoothen

Technical Specification of Handheld Digital Ultrasound Scanner:
Display Modes: B, B + B, B + M, M, 4B
Scanning Depth: 80 mm ~220 mm
Gray Scales: 256
Cine-loop: 400 frames
Image Permanent: 128 frames
Storage: up/down, left/right
Image Conversion: distance, circumference, area, volume, EF rate, heart rate, Time
OB Measurements: BPD, GS, CRL, FL, HC, AC, EDD, GA, FW
Port: VIDEO (PALD, NTSC), USB 2.0, Mouse
Monitor: 5 inch TFT color LCD
Body marks: 40
Comments date time, name, sex, age, hospital,
Applications: abdominal, OB/GYN, urology, cardiology,
Weight: 700g
Dimensions: 230 mm × 120 mm × 38 mm
Battery Working : >3 hours

Probes of Handheld Digital Ultrasound Scanners:
(1)3.5 MHz Convex Probe
Frequency range: 2.5 MHz, 3.5 MHz, 5.0 MHz
Application:Abdomen, GYN, OB, Urology
(2)7.5 MHz Linear Probe
Frequency range: 6.5 MHz, 7.5 MHz, 8.5 MHz
Application:Small Parts
(3)5.0 MHz Micro-Convex Probe
Frequency range: 4.5 MHz, 5.0 MHz, 5.5 MHz
(4)6.5 MHz Transvaginal Convex Probe
Frequency range: 5.5 MHz, 6.5 MHz, 7.5 MHz
Application: Transvaginal, Endorectal

Standard Configuration of Handheld Digital Ultrasound Scanner:
3.5 MHz convex probe (Frequency range: 2.5 MHz, 3.5 MHz, 5.0 MHz)
SP-3 power adapter
Mouse

Options of our Handheld Digital Ultrasound Scanner:
5.0 MHz micro-convex probe (Frequency range: 4.5 MHz, 5.0 MHz, 5.5 MHz)
7.5 MHz HF linear probe (Frequency range: 6.5 MHz, 7.5 MHz, 8.5 MHz)
6.5 MHz endo-vaginal probe (Frequency range: 5.5 MHz, 6.5 MHz, 7.5 MHz)
Video Printer
Extra battery
Car charger

We are a manufacturer and supplier of handheld digital ultrasound scanner in China. Based on the advanced technologies abroad and at home, our products have passed the certification of CMD, ISO and CE, and our products have been well received by customers all over the world, such as Syria, Kazakhstan, Kyrgyzstan, India, Pakistan, Iran, Vietnam, and many other countries and districts. If you're interested in handheld digital ultrasound scanner, please don't hesitate to contact us freely.
