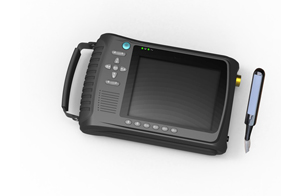

PL-3018V Handheld Digital Ultrasound Scanner

PL-3018V Handheld Digital Ultrasound Scanner

Description:
The PL-3018V handheld digital ultrasound scanner is a well-balanced choice for those who require both the value of features of traditional color Doppler ultrasound system and the accessibility without any budget constraint. The USB disk function makes the images easily transferred into computer. Its rechargeable battery could last at least three hours. Due to our remarkable design and success in the ultrasound field, this handheld ultrasound scanner will offer customers amazing image quality and functionality with refreshing experience.

Main Technical Features of PL-3018V Handheld Digital Ultrasound Scanner:
Net Weight: 700g
5.0 inch TFT LCD
Easy-to-use GUI menu
Low power consumption
USB 2.0 for real-time picture uploading to PC
Full digital beamforming technology
Probe automatic identification
Gama correction, Color encode, Image Smoothen

Technical Specifications of PL-3018V Handheld Ultrasound Scanner:

Display Modes B, B + B, B + M, M, 4B
Scanning Depth 80 mm to 220 mm
Gray Scales 256
Cine-loop 400 frames
Image Permanent 128 frames
Storage up or down, left or right
Image Conversion distance, circumference, area, volume, EF rate, heart rate, time
OB Measurements BPD, GS, CRL, FL, HC, AC, EDD, GA, FW
Port VIDEO (PALD, NTSC), USB 2.0, Mouse
Monitor 5 inch TFT color LCD
Body Marks 40
Applications abdominal, OB/GYN, urology, cardiology, etc.
Weight 700g
Dimensions 230 mm × 120 mm × 38 mm
Battery Working more than 3 hours
Annotation and Comment date, time, name, sex, age, hospital

Probes of PL-3018V Handheld Digital Ultrasound Scanner:

Type Frequency Range Application
3.5 MHz Convex Probe 2.5 MHz, 3.5 MHz, 5.0 MHz Abdomen, GYN, OB, Urology
7.5 MHz Linear Probe 6.5 MHz, 7.5 MHz, 8.5 MHz Small Parts
5.0 MHz Micro-Convex Probe 4.5 MHz, 5.0 MHz, 5.5 MHz Pig, Cat, Dog
6.5 MHz Transvaginal Convex Probe 5.5 MHz, 6.5 MHz, 7.5 MHz Transvaginal, Endorectal
7.5 MHz Endorectal Probe 6.5 MHz, 7.5 MHz, 8.5 MHz Bonivi (Cow), Horse

Standard Configuration of PL-3018V Handheld Ultrasound Scanner:
3.5 MHz convex probe (Frequency range: 2.5 MHz, 3.5 MHz, 5.0 MHz)
SP-3 power adapter
Mouse

Options of Our Handheld Digital Ultrasound Scanners:
5.0 MHz micro-convex probe (Frequency range: 4.5 MHz, 5.0 MHz, 5.5 MHz)
7.5 MHz HF linear probe (Frequency range: 6.5 MHz, 7.5 MHz, 8.5 MHz)
6.5 MHz endo-vaginal probe (Frequency range: 5.5 MHz, 6.5 MHz, 7.5 MHz)
7.5 MHz endorectal linear probe (Frequency range: 6.5 MHz, 7.5 MHz, 8.5 MHz)
Video Printer
Extra battery
Car charger
